Product Introduction:

Our steel Tube RTP (Reinforced Thermoplastic Pipe) offers a superior combination of strength, drability, and corrosion resistance. This innovative pipe is manufactured through a multi-layer composite process that completely encapsulates a steel pipe within two layers of thermoplastic material. The unique jointesign ensures that the metal

pipe has no direct contact with the conveyed medium, providing exceptional performnce and longevity.

Materials:

Core tube : HDPE/POE/PERT

Reinforce Layer: Steel Tube

Protect Layer : PE Tube

Standard: EN1092, ISO4427, API5L.API 15S

Pressure Rating: PN7.0-35.0MPa

Operating temperature: -50 ℃ to 149 ℃

Nominal ID: 1inch to 16 inch ;OD63mm-1200mm

Color: Black ,White,Green, Blue, Yellow, Orange, other colors as request.

Length: 5.8m/PC,11.8m/PC

Typical features of Steel tube RTP

Superior Strength: The embedded steel pipe provides exceptional strength, enabling the pipe to withstand high pressures and demanding operating conditions.

Corrosion Resistance: The thermoplastic outer and inner layers offer excellent corrosion resistance, protecting the steel pipe and extending the pipe's service life.

Abrasion Resistance: The combination of steel and thermoplastic materials(HDPE/UHMWPE/POE) provides superior abrasion resistance, making it ideal for handling abrasive slurries and solids.

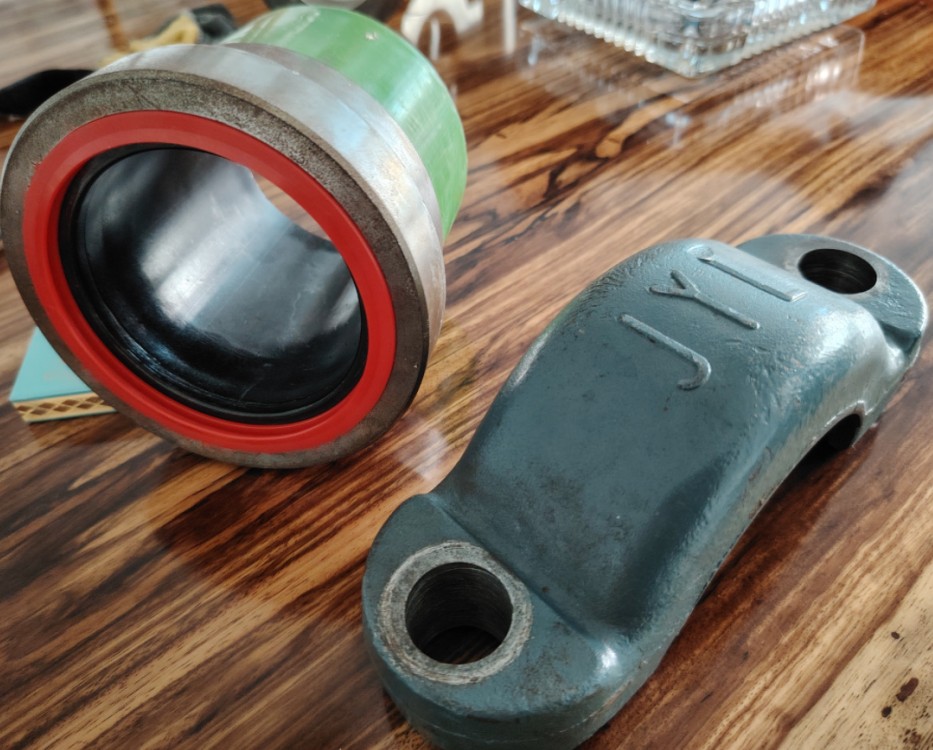

Leak-Proof Joints: The specialized joint design ensures a leak-proof connection, preventing any leakage or

contamination of the conveyed medium.

Quick Installation: The installation only needs two bolts&Nuts, one connection finish in few minutes.

Long Service Life: The combination of materials and construction techniques results in a pipe with a long service life, reducing maintenance costs.

Versatility: Suitable for a wide range of applications, including oil and gas, water supply, chemical processing, and

mining

Unique Construction

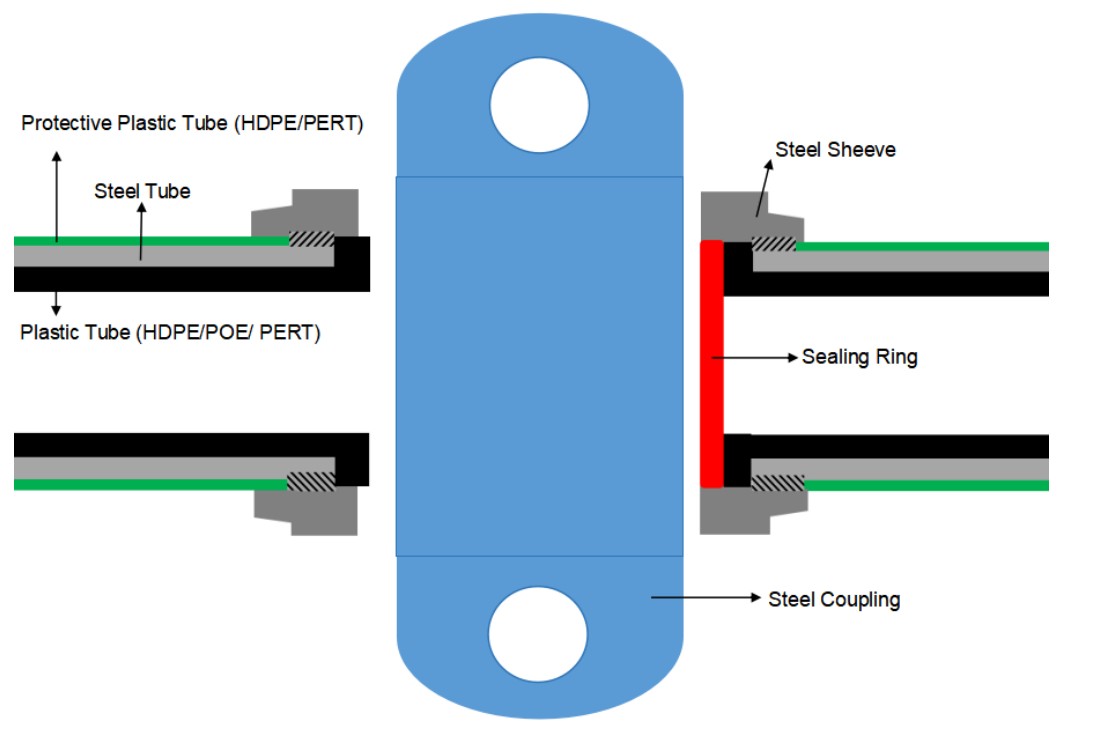

Multi-Layer Composite: The pipe consists of three layers: an inner thermoplastic tube layer, a steel pipe, and an outer thermoplastic layer.

Complete Encapsulation: The steel pipe is completely encapsulated by the thermoplastic layers,

protecting it from corrosion and providing a smooth inner surface.

Specialized Joint: The joint design ensures a watertight seal and prevents any contact between the metal pipe and the conveyed medium.

Applications

Oil and Gas: For subsea pipelines, onshore gathering systems, and flowlines.

Water Supply: For high-pressure water transmission and distribution systems.

Chemical Processing: For handling corrosive and abrasive fluids.

Mining: For slurry transportation and dewatering applications.

Specification

Our steel tube-reinforced RTP (Reinforced Thermoplastic Pipe) offers a highly customizable solution for

a wide range of applications. The pipe's unique construction, combining a steel tube with multiple

layers of thermoplastic materials, provides exceptional strength, durability, and corrosion resistance.

Customization Options

Our steel-reinforced RTP pipes are engineered to meet specific customer requirements.

Key customization options include:

Temperature and Pressure Ratings: Pipes can be designed to withstand a wide range of temperatures and pressures to meet the demands of various applications.

Abrasion Resistance: For applications involving abrasive materials, we offer a variety of inner liner materials such as POE, EPDM, UHMWPE, and PTFE to provide superior wear resistance.

Chemical Compatibility: We can select materials that are compatible with specific chemicals and substances to ensure long-term performance.

Service Life: By carefully selecting materials and construction techniques, we can design pipes with extended service lives to minimize maintenance costs.

Multi-Layer Composite Construction

The pipe consists of multiple layers:

Inner Thermoplastic Layer: The inner layer provides a smooth surface for fluid flow and can be made from various materials such as POE, EPDM, UHMWPE, PTFE, PERT, PEX, or PSU, depending on the specific application requirements.

Steel Tube: The steel tube provides structural support and enhances the pipe's pressure rating.

Outer Thermoplastic Layer: The outer layer protects the steel tube from corrosion and provides

additional mechanical strength.

Material Selection

The choice of materials for each layer is critical in determining the overall performance of the pipe.

Some common materials and their properties include:

PERT: Offers excellent resistance to high temperatures and chemicals.

PEX: Provides a balance of flexibility, durability, and chemical resistance.

PSU: Offers excellent chemical resistance and can withstand high temperatures.

POE: Provides excellent abrasion resistance and is suitable for handling abrasive slurries.

EPDM: Offers good chemical resistance and flexibility.

UHMWPE: Provides exceptional wear resistance and is ideal for abrasive applications.

PTFE: Offers excellent chemical resistance and low friction.
