High-Performance Reinforced Thermoplastic Pipe (RTP) for Salt Mining Applications

Product Specifications:

Nominal Diameter: DN/ID 10 Inch (250mm)

Pressure Rating: PN 100 Bar (1,450 PSI)

Burst Pressure: >300 Bar (4,350 PSI)

Application: Salt mining and brine extraction operations

Key Features:

Superior Pressure Resistance

Our RTP pipe delivers exceptional performance with a working pressure of 100 Bar and minimum burst pressure exceeding 300 Bar, providing a 3:1 safety factor for the most demanding salt mining applications.

Advanced Steel Cord Reinforcement

The pipe incorporates high-tensile steel cord reinforcement as the primary strengthening element, ensuring maximum pressure containment while maintaining flexibility. This steel cord layer provides superior burst resistance compared to traditional fiber-reinforced systems.

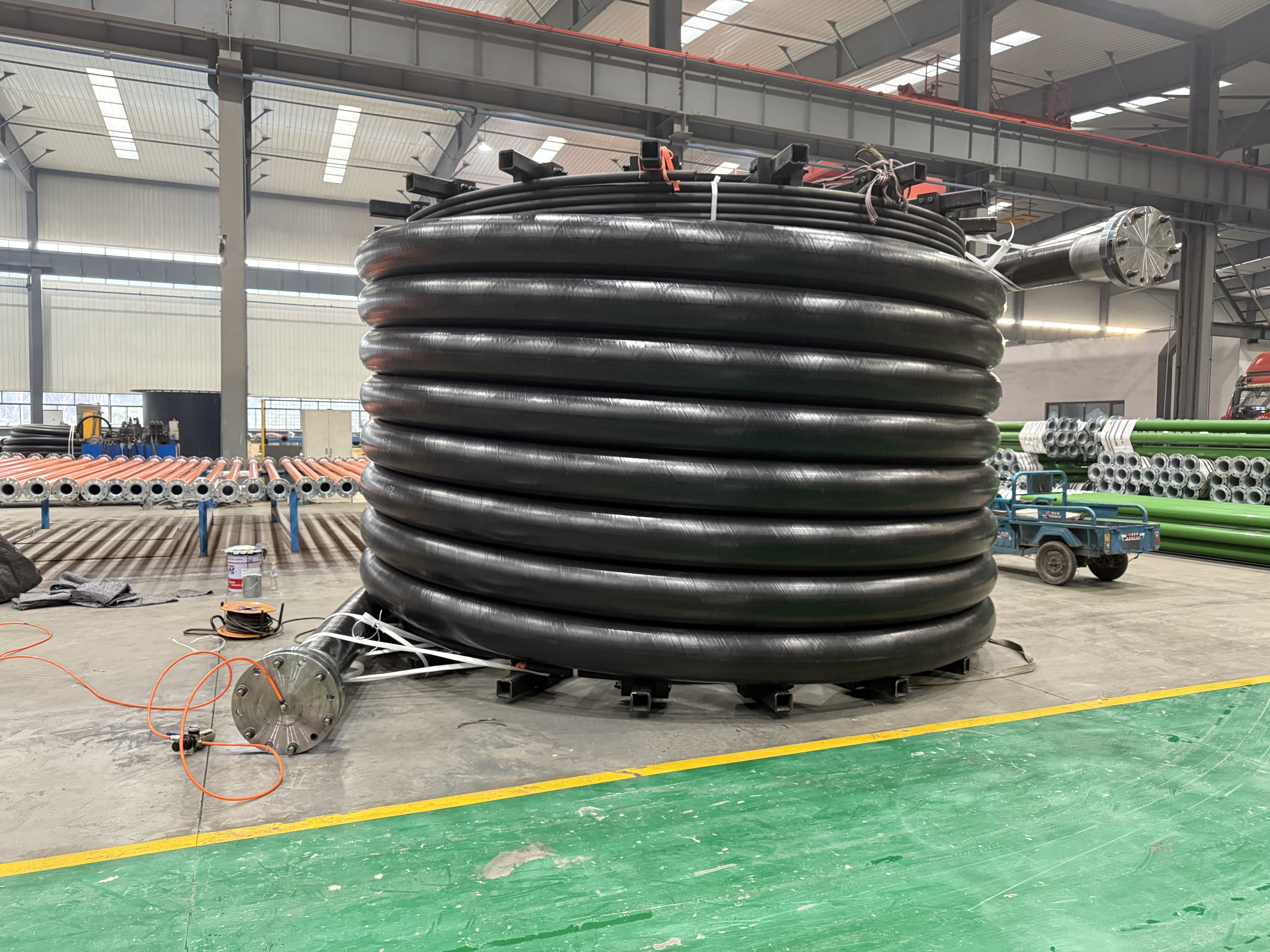

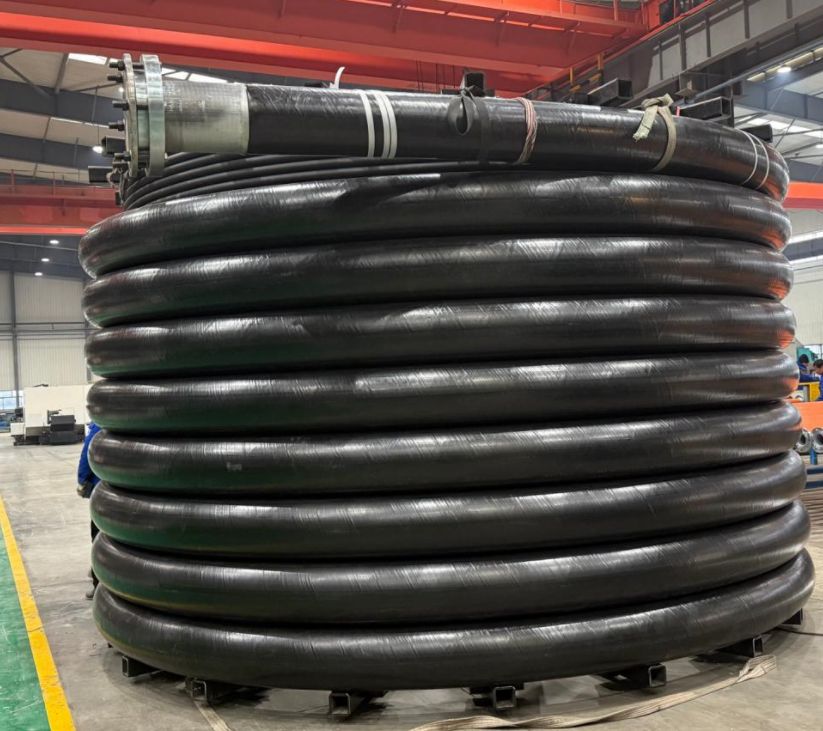

Coilable Design for Cost-Effective Installation

Unlike rigid steel piping, our RTP can be supplied in continuous lengths up to 600 meters on reels, significantly reducing installation time and costs. The coilable design eliminates the need for numerous joints and fittings, minimizing potential leak points in corrosive salt mining environments.

Exceptional Corrosion Resistance

Engineered specifically for salt mining operations, the thermoplastic liner and outer jacket provide complete protection against brine corrosion, eliminating the need for costly cathodic protection systems required by metal pipes.

Superior Abrasion Resistance

The specialized polymer formulation offers excellent wear resistance against salt crystals and particulate matter, ensuring extended service life in abrasive mining conditions where traditional materials fail prematurely.

Technical Advantages:

Operating temperature range: -40°C to +65°C

Excellent chemical resistance to salts and mining chemicals

Reduced maintenance requirements compared to steel alternatives

Lightweight construction enables faster, safer installation

Flexible design accommodates ground movement and thermal expansion

Quality Assurance:

Manufactured in accordance with international standards for reinforced thermoplastic pipes, with comprehensive testing including hydrostatic pressure testing, dimensional verification, and material certification.

This RTP solution offers salt mining operations a reliable, cost-effective alternative to traditional steel piping systems while providing superior performance in harsh underground environments.
